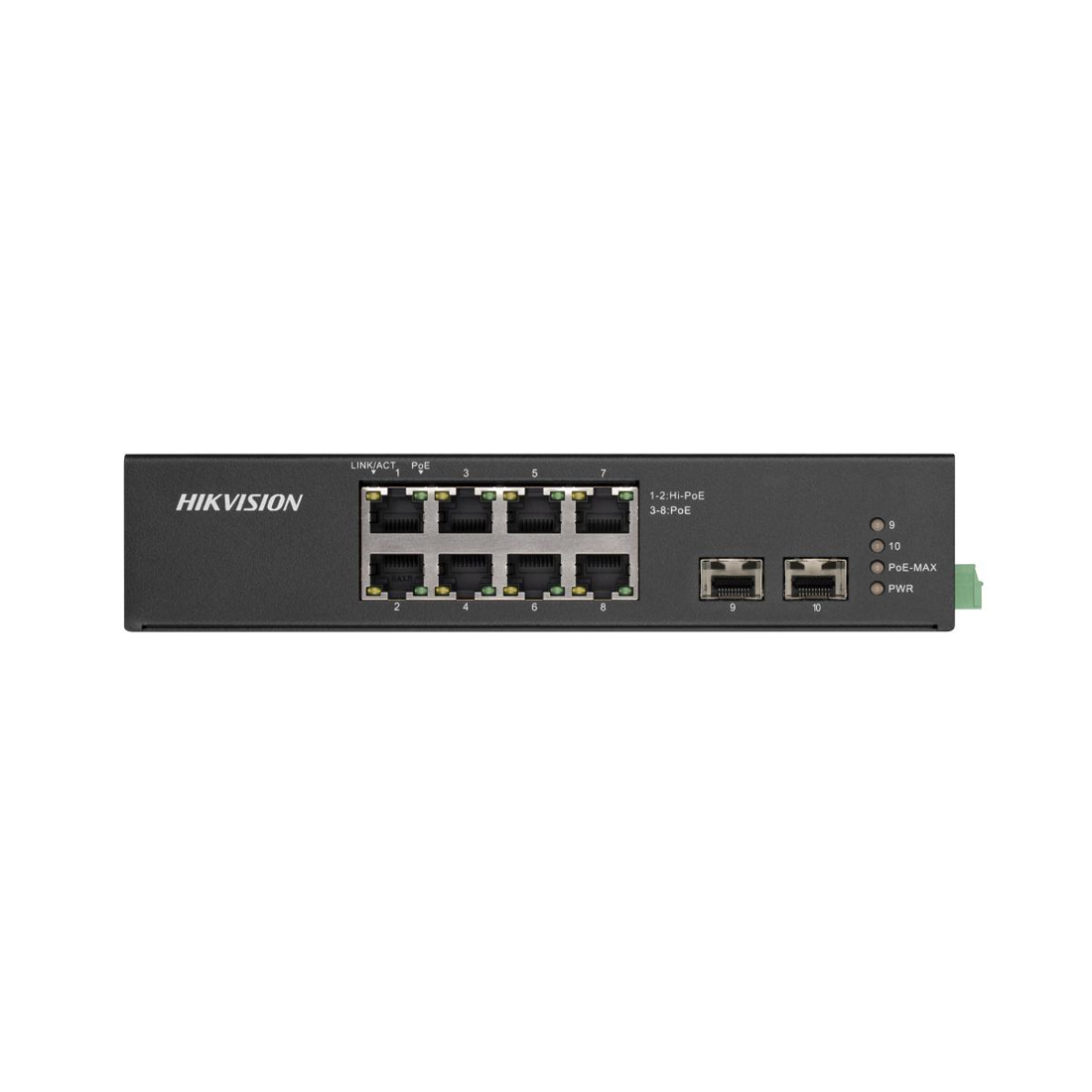

Коммутатор, Hikvision, DS-3T0510HP/No Power unit, Неуправляемый, 8 x Gigabit RJ45, РоЕ 802.3af/at/bt 110W, 2 x SFP, DIN рейка, 90 W Hi-PoE Output for Ports 1-2

Описание

Коммутатор, Hikvision, DS-3T0510HP/No Power unit, Неуправляемый, 8 x Gigabit RJ45, РоЕ 802.3af/at/bt 110W, 2 x SFP, DIN рейка, 90 W Hi-PoE Output for Ports 1-2

Коммутатор, Hikvision, DS-3T0510HP/No Power unit, Неуправляемый, 8 x Gigabit RJ45, РоЕ 802.3af/at/bt 110W, 2 x SFP, DIN рейка, 90 W Hi-PoE Output for Ports 1-2

General

ShellMetal material, fan-free design

Net Weight0.585 kg (1.29 lb)

Gross Weight1.11 kg (2.45 lb)

Dimensions (W × H × D)197 mm × 114.2 mm × 42.2 mm (7.76” × 4.50” × 1.66”)

Operating Temperature-40 °C to 75 °C (-40 °F to 167 °F)

Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity5% to 95% (no condensation)

Relative Humidity5% to 95% (no condensation)

Power Supply48-57VDC, 2.5A

Max. Power Consumption120 W

Power Consumption in Idle10 W

Installation ModeDesk-Mounted,Rail

Surge Protection6 KV

Network Parameters

Ports8 × Gigabit PoE port,2 × Gigabit fiber optical port

MAC Address Table4 K

Switching Capacity20 Gbps

Internal Cache1.5 Mbits

Packet Forwarding Rate14.88 Mpps

PoE Power Supply

PoE StandardIEEE 802.3af,IEEE 802.3at,IEEE 802.3bt

PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(-), 7/8(+)

PoE PortHi-PoE: Ports 1 to 2,PoE: Ports 3 to 8

Max. Port PowerPorts 1 to 2: 90 W
