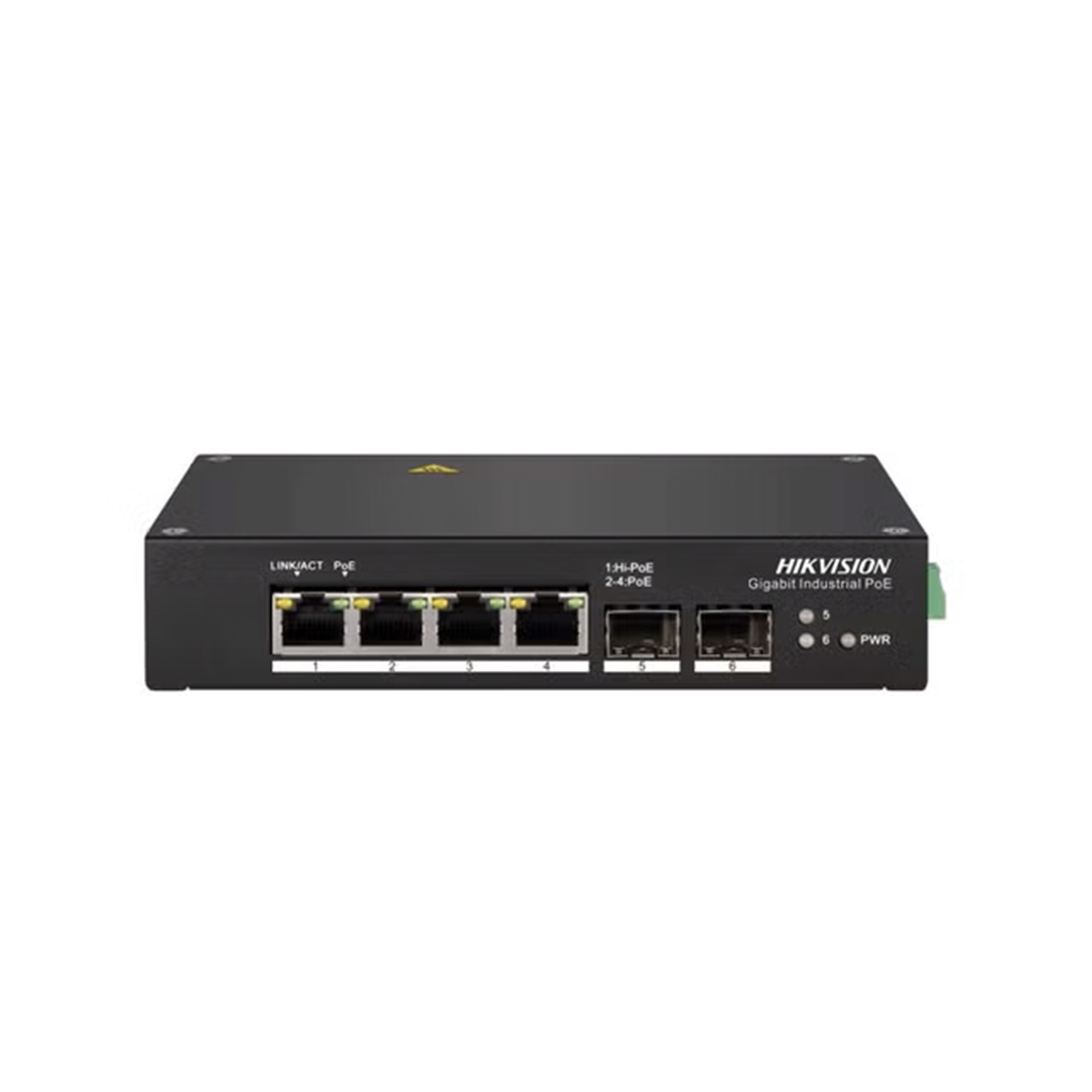

Коммутатор, Hikvision, DS-3T0506HP/No Power unit, Неуправляемый, 4 x Gigabit RJ45, РоЕ 802.3af/at/bt 110W, 2 x SFP, DIN рейка, 90 W Hi-PoE Output for Port 1

Описание

Коммутатор, Hikvision, DS-3T0506HP/No Power unit, Неуправляемый, 4 x Gigabit RJ45, РоЕ 802.3af/at/bt 110W, 2 x SFP, DIN рейка, 90 W Hi-PoE Output for Port 1

Коммутатор, Hikvision, DS-3T0506HP/No Power unit, Неуправляемый, 4 x Gigabit RJ45, РоЕ 802.3af/at/bt 110W, 2 x SFP, DIN рейка, 90 W Hi-PoE Output for Port 1

General

ShellMetal material, fan-free design

Net Weight0.38 kg (0.84 lb)

Gross Weight0.94 kg (2.07 lb)

Dimensions (W × H × D)158 mm × 101.2 mm × 31.6 mm (6.22” × 3.98” × 1.24”)

Operating Temperature-40 °C to 75 °C (-40 °F to 167 °F)

Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity5% to 95% (no condensation)

Relative Humidity5% to 95% (no condensation)

Power Supply48-57VDC, 2.5A

Max. Power Consumption120 W

Power Consumption in Idle10 W

Installation ModeDesk-Mounted,Rail

Surge Protection6 KV

Network Parameters

Ports4 × Gigabit PoE port,2 × Gigabit fiber optical port

MAC Address Table2 K

Switching Capacity12 Gbps

Internal Cache1.0 Mbits

Packet Forwarding Rate8.93 Mpps

PoE Power Supply

PoE StandardIEEE 802.3af,IEEE 802.3at,IEEE 802.3bt

PoE Power Pin8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE PortHi-PoE: Ports 1 to 1,PoE: Ports 2 to 4

Max. Port PowerPorts 1: 90 W
