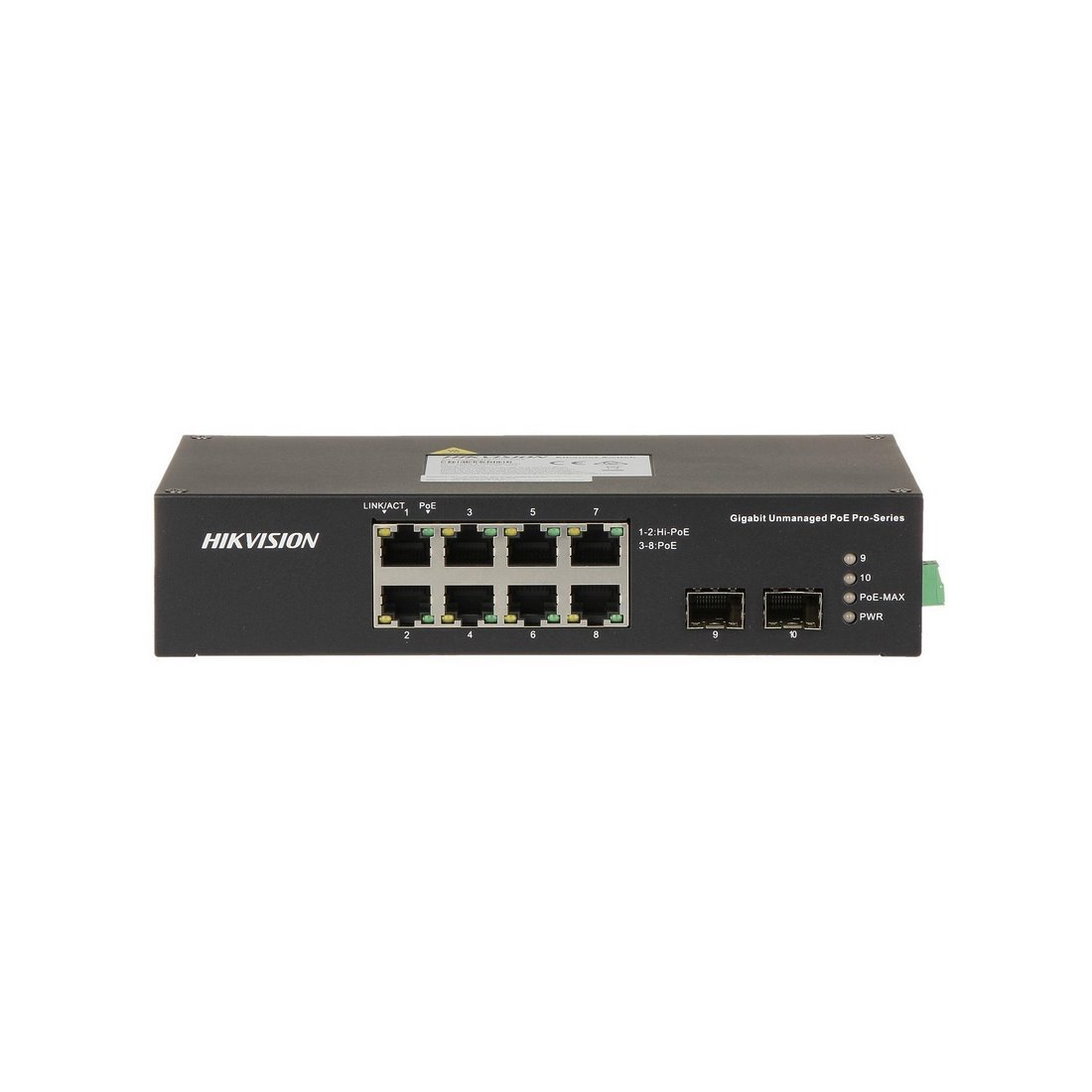

Коммутатор Hikvision DS-3T0310HP/No Power unit

Описание

Коммутатор, Hikvision, DS-3T0310HP/No Power unit, Неуправляемый, 8 x 10/100 Mbps, РоЕ 802.3af/at/bt 110W, 1 x Gigabit RJ45, 1 x SFP combo, DIN рейка, Long Range Ports 7 to 8: up to 300 m.

Коммутатор, Hikvision, DS-3T0310HP/No Power unit, Неуправляемый, 8 x 10/100 Mbps, РоЕ 802.3af/at/bt 110W, 1 x Gigabit RJ45, 1 x SFP combo, DIN рейка, Long Range Ports 7 to 8: up to 300 m.

General

ShellMetal material, fan-free design

Net Weight0.565 kg (1.25 lb)

Gross Weight1.24 kg (2.73 lb)

Dimensions (W × H × D)197 mm × 114.2 mm × 42.2 mm (7.76” × 4.50” × 1.66”)

Operating Temperature-40 °C to 75 °C (-40 °F to 167 °F)

Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity5% to 95% (no condensation)

Relative Humidity5% to 95% (no condensation)

Power Supply48-57VDC, 2.5A

Max. Power Consumption120 W

Power Consumption in Idle10 W

Installation ModeDesk-Mounted,Rail

Surge Protection6 KV

Network Parameters

Ports8 × 10/100 Mbps PoE port,1 × Gigabit RJ45 port,1 × Gigabit fiber optical port

MAC Address Table4 K

Switching Capacity5.6 Gbps

Internal Cache1.5 Mbits

Packet Forwarding Rate4.17 Mpps

PoE Power Supply

PoE StandardIEEE 802.3af,IEEE 802.3at,IEEE 802.3bt

PoE Power PinPorts 3-6： End-span: 1/2(-), 3/6(+)； Ports 1-2，Ports 7-8： 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE PortHi-PoE: Ports 1 to 2,PoE: Ports 3 to 8

Max. Port Power
