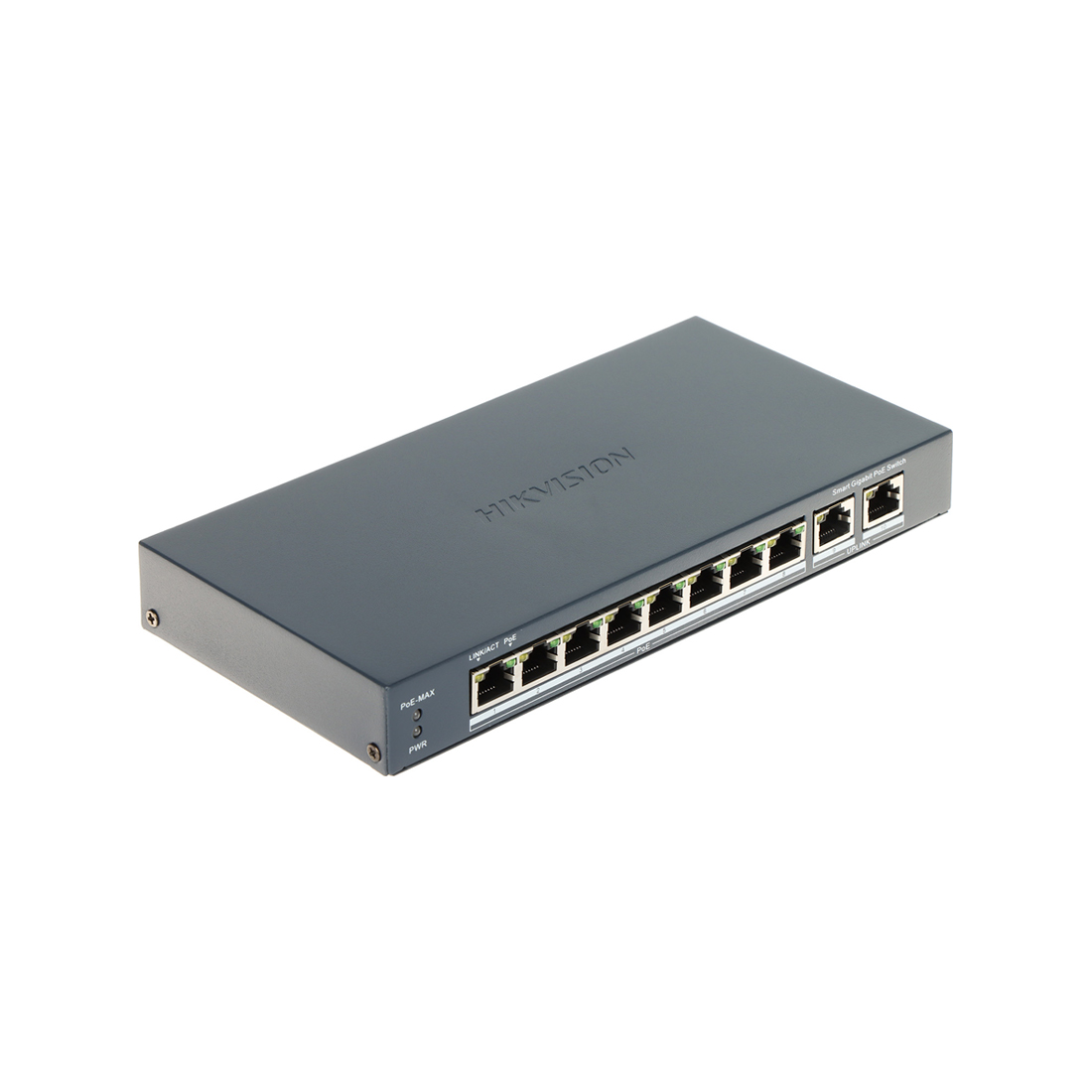

Коммутатор, Hikvision, DS-3E1510P-EI (V2), Управляемый L2, 8 x Gigabit RJ45, РоЕ 802.3af/at 110W, 2 x Gigabit RJ45, Настольный, Long Range Ports 1 to 8: up to 300 m.

Описание

Коммутатор, Hikvision, DS-3E1510P-EI (V2), Управляемый L2, 8 x Gigabit RJ45, РоЕ 802.3af/at 110W, 2 x Gigabit RJ45, Настольный, Long Range Ports 1 to 8: up to 300 m.

Коммутатор, Hikvision, DS-3E1510P-EI (V2), Управляемый L2, 8 x Gigabit RJ45, РоЕ 802.3af/at 110W, 2 x Gigabit RJ45, Настольный, Long Range Ports 1 to 8: up to 300 m.

8 × Gigabit PoE port,2 × Gigabit RJ45 port

Total PoE Power Budget 110W

Support 802.1Q VLAN

Support PoE watchdog to detect and restart the cameras that do not respond

Support STP/RSTP Loop prevention

Support cable detection to locate failure

Up to 300 m Long Range PoE Transmission

6KV Surge Protection

General

Dimensions (W × H × D)217.6 mm × 27.6 mm × 108.5 mm (8.57” × 1.09” × 4.27”)

Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F)

Installation ModeDesk-Mounted,Wall-Mounted

Gross Weight1.27 kg (2.8 lb)

Net Weight0.54 kg (1.19 lb)

Power Consumption in Idle2.7 W

ShellMetal material

Operating Temperature0 °C to 40 °C (32 °F to 104 °F)

Operating Humidity5% to 95% (no condensation)

Power Supply54VDC, 2.22A

Max. Power Consumption120 W

Relative Humidity5% to 95% (no condensation)

Surge Protection6 KV

Network Parameters

Ports8 × Gigabit PoE port,2 × Gigabit RJ45 port

MAC Address Table4 K

Switching Capacity20 Gbps

Packet Forwarding Rate14.88 Mpps

Internal Cache1.5 Mbits

PoE Power Supply

PoE Standard
